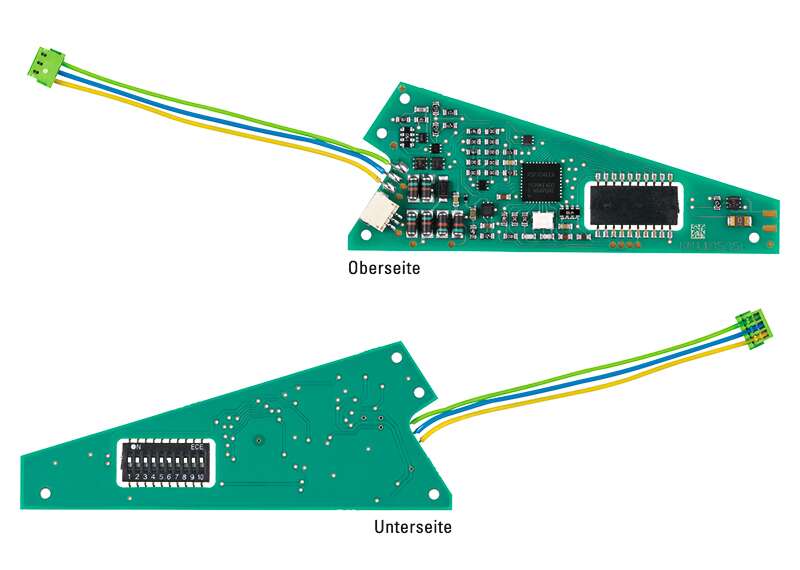

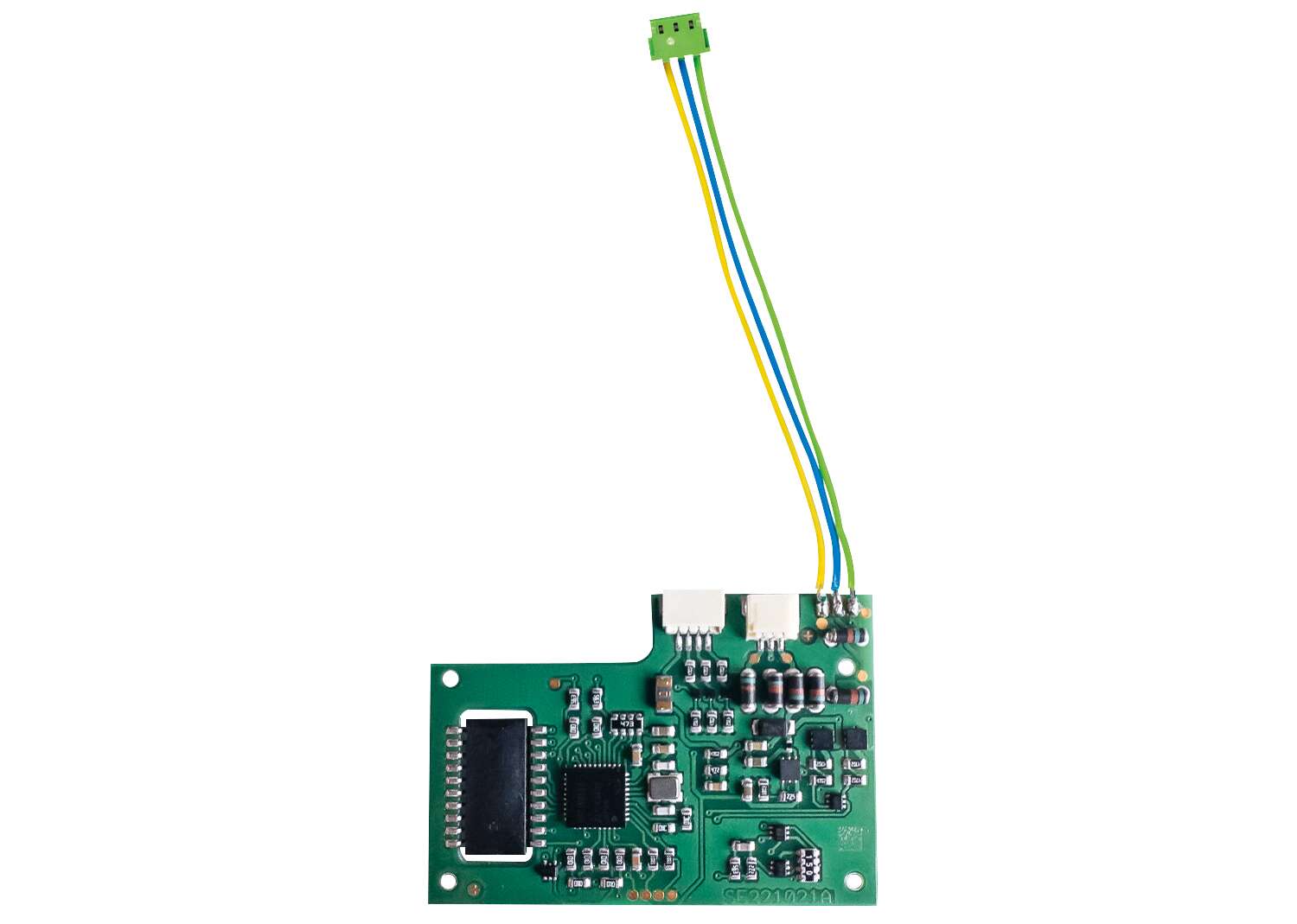

Digital Installation Double Slip Switch Decoder (C Track)

This decoder is for installation in a 24720 C Track wide-angle double slip switch or a 62720 Trix wide-angle double slip switch. The decoder can be used for the digital formats mfx, Motorola, and DCC. Connections are made using plug contacts. The address can be set using coding switches (MM 1–320, DCC 1–511) as well as with CVs (MM 1–320, DCC 1–2044) by using a programming track. A 74477 double slip switch lantern (not included) can also be controlled from this decoder.

A digital decoder can be used at the same time or later for electric operation of turnouts and double slip switches. The decoder is simply connected with plug contacts and can be individually addressed for each turnout or double slip switch. The digital current supply can come directly from the train current contact (center conductor in the track) for the turnout or double slip switch. In this manner, you get a finished digital turnout or double slip switch, which is ready to work on temporary or mobile layouts.
