Class 01.10 Older Design Steam Locomotive

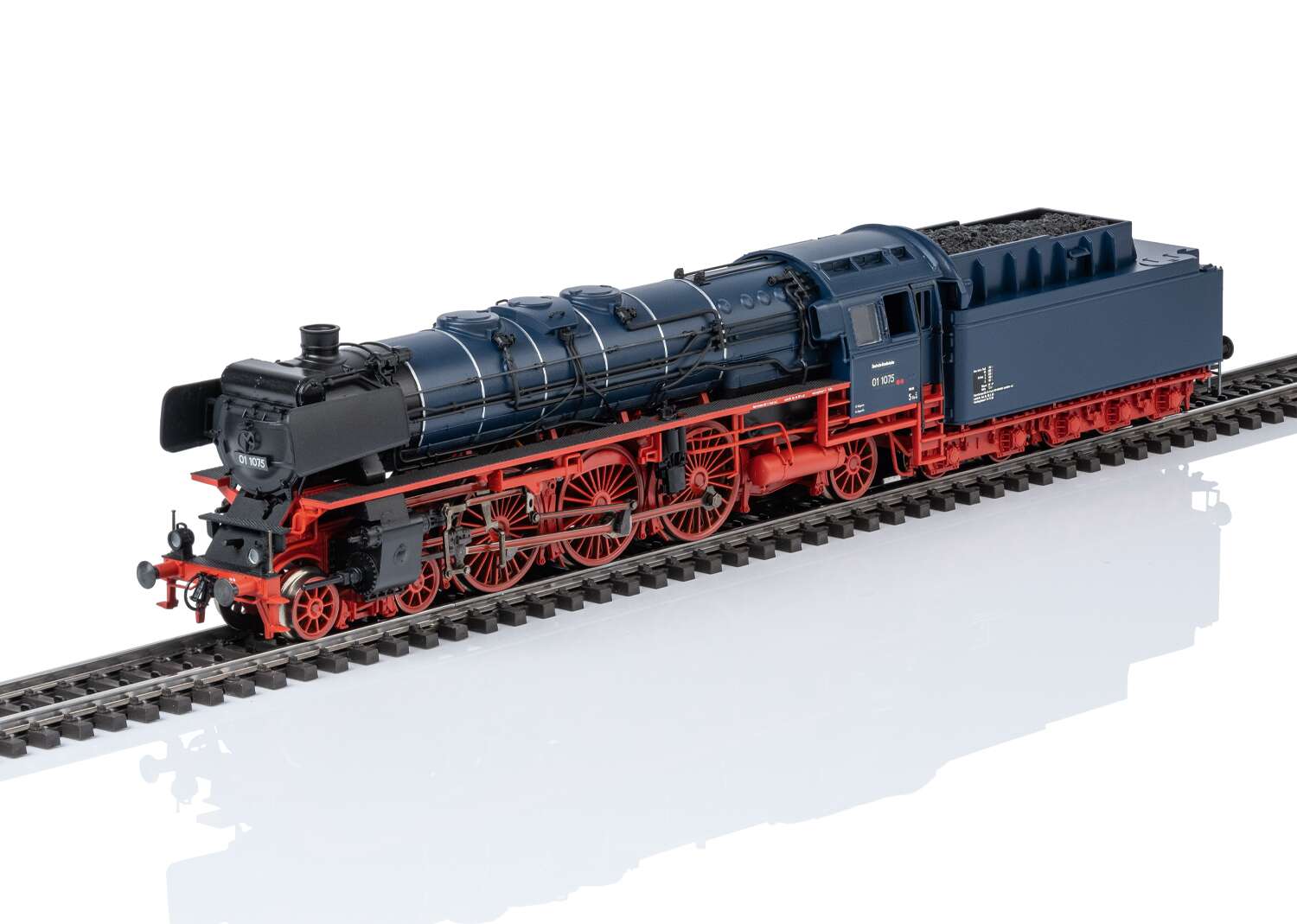

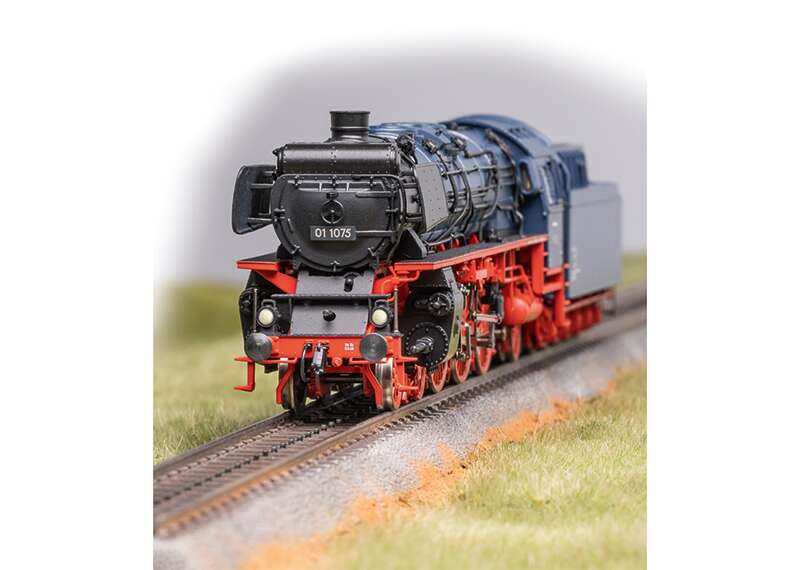

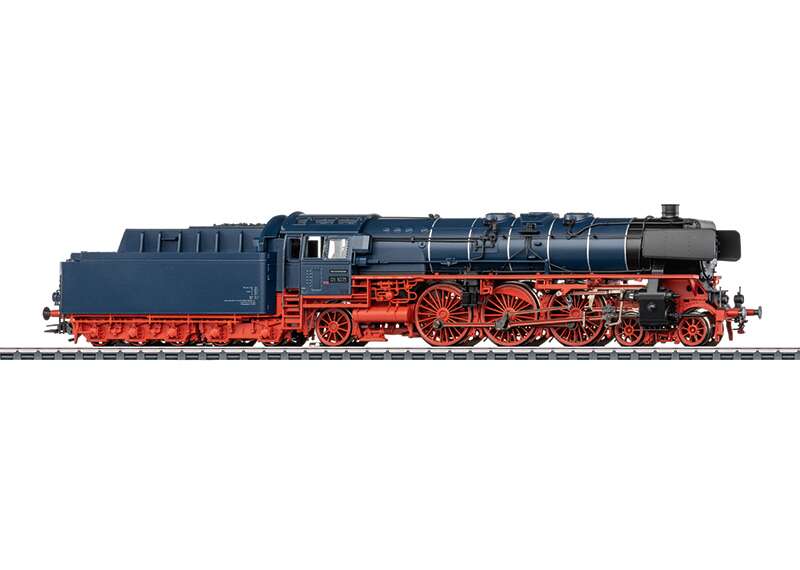

Prototype: German Federal Railroad (DB) class 01.10 express steam locomotive  with an older boiler design and type 2´3 T38 coal tender. Steel-blue basic paint scheme with black smokebox and silver boiler bands, based on the “F-Zug” network of express trains. Version without streamlined fairing. With striking transverse surface feed-water heater on the smokebox. Dual headlights. Witte smoke deflectors and an inductive magnet on one side. Loco road number 01 1075. The loco looks as it did around 1950.

Highlights

• Special model for the 18th Dealer Initiative Members’ Meeting 2026.

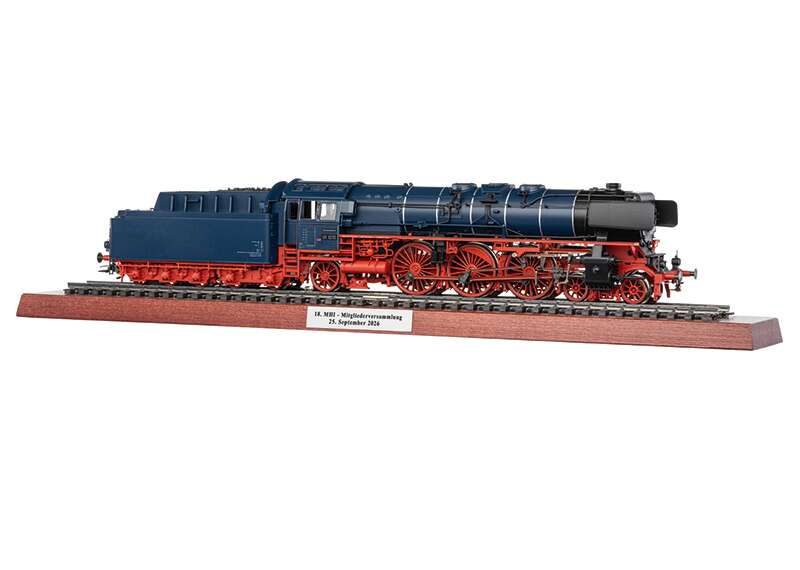

• With presentation base and track.
• Elegant steel-blue paint scheme with silver boiler bands.
• Especially intricate metal construction.
• Numerous separately applied details.
• Factory-installed smoke generator and speed-dependent, dynamic smoke exhaust.
• The cab lights, firebox flickering, and running gear lights can be controlled digitally.
• World of Operation mfx+ decoder with extensive light and sound functions.
• The buffer height conforms to NEM specifications.
• A buffer capacitor to bridge short unpowered sections of track is fitted.

Model: The loco has an mfx+ digital decoder and extensive sound functions. It also has a controlled high-performance motor with a flywheel, mounted in the boiler. Three axles on the model are powered. Traction tires are fitted. The locomotive and tender are made mostly of metal. The model has a factory-fitted smoke generator with speed-dependent, dynamic smoke exhaust. Dual headlights change over with the direction of travel, work conventionally, and can be controlled digitally. The cab lights, firebox flickering, and running gear lights can be controlled separately in digital operation. Maintenance-free warm-white and red LEDs are used for the lighting. A buffer capacitor is fitted. There is a close coupling with a guide mechanism between the loco and tender. The tender has a close coupling with a guide mechanism and an NEM pocket. The buffer heights on the loco and tender conform to NEM specifications. The minimum radius for operation is 360 mm / 14-3/16". Protective piston sleeves and brake hoses as well as figures of a locomotive engineer and a fireman are included. Length over the buffers 27.7 cm / 10-7/8".

Find more Märklin explanation videos on our YouTube Channel

Spare parts for our articles can be found here in our spare parts search.

One-time special version for the 18th Dealer Initiative Members’ Meeting on September 25, 2026.

Digital Functions

* New features of the Central Station 2 (Part No. 60213, 60214 or 60215) with the software update 4.2

** New features of the Mobile Station 2 (Part No. 60657/66955) with the Software Update 3.55
