Class 044 Steam Locomotive

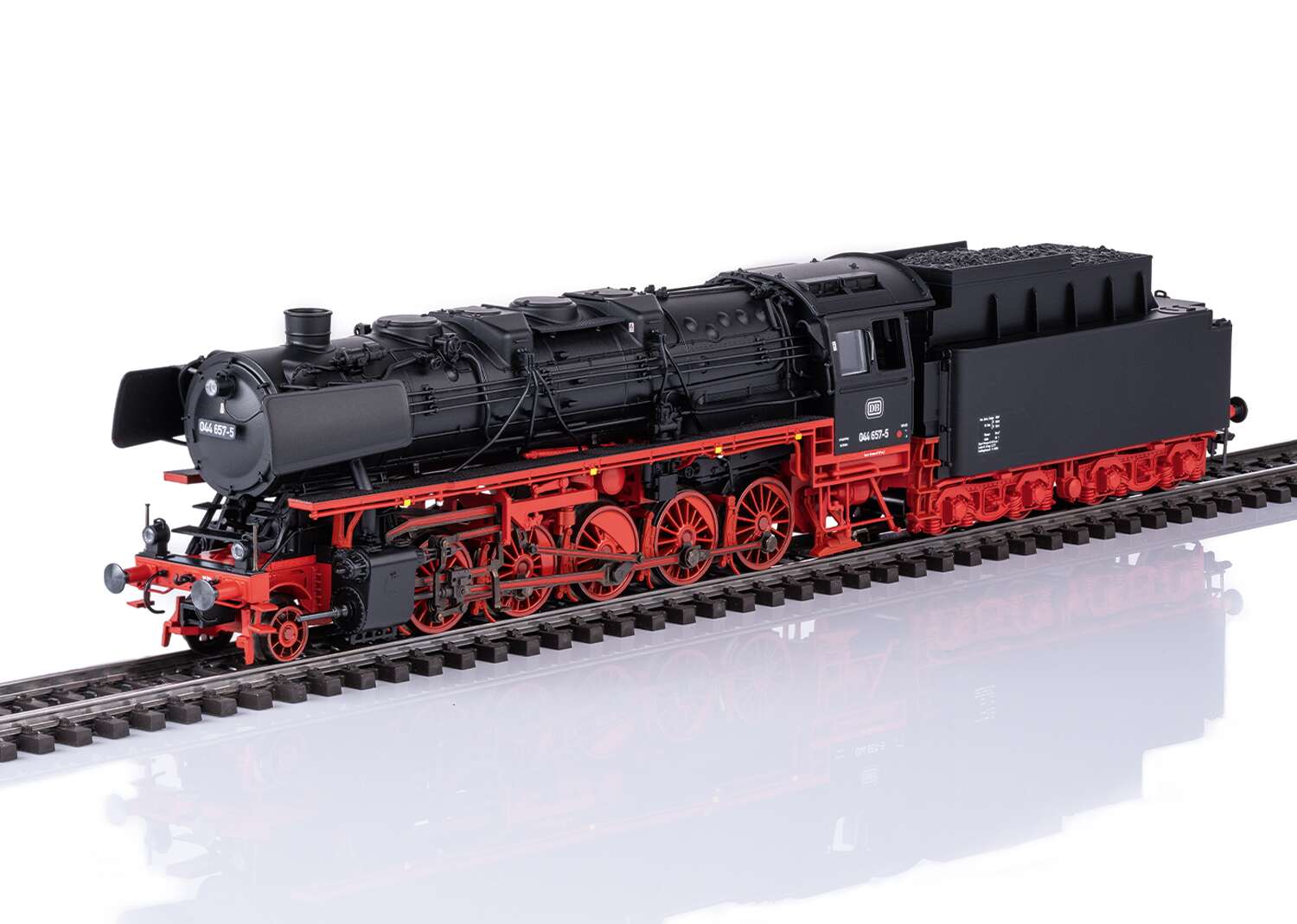

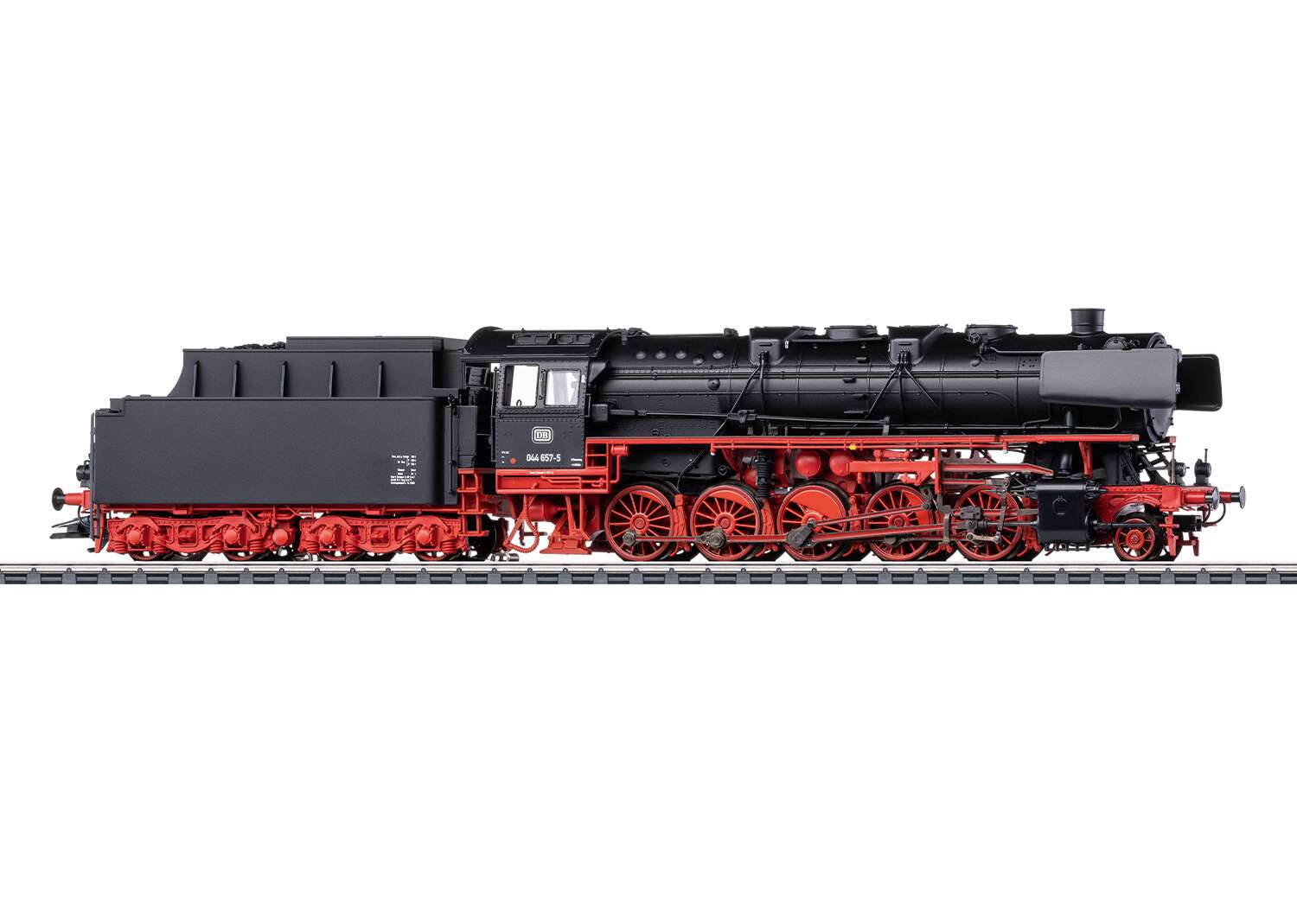

Prototype: German Federal Railroad (DB) class 044 heavy steam freight locomotive, with a type 2´2´T34 standard design coal tender. Black/red basic paint scheme. Standard design Witte smoke deflectors, pilot truck wheel set with spoked wheels, without smoke box central locking, with inductive magnets on both sides. Road number 044 657-5. The locomotive looks as it did around 1973.

Highlights

• Another Märklin classic.
• World of Operation mfx+ digital decoder and a variety of operation and sound functions.
• Digitally controlled cab lighting, firebox flickering, and flickering at the ash pan.
• Type 2`2`T34 coal tender included.
• Partially open bar frame with mostly open view between the frame and boiler.
• High-efficiency propulsion with a flywheel, mounted in the boiler.

Product description

Model: The locomotive has an mfx+ digital decoder and extensive sound functions. It also has controlled high-efficiency propulsion with a flywheel, mounted in the boiler. 5 axles powered. Traction tires. The locomotive and the coal tender are constructed mostly of metal. The 7226 smoke unit can be installed in the locomotive. The triple headlights change over with the direction of travel. They and the smoke unit that can be installed in the locomotive will work in conventional operation and can be controlled digitally. The cab lighting, firebox flickering, and flickering at the ash pan can also be controlled separately in digital operation. Maintenance-free warm white and red LEDs are used for the lighting. There is a close coupling with a guide mechanism between the locomotive and tender. There is a close coupler with an NEM pocket and a guide mechanism on the rear of the tender and on the front of the locomotive. The minimum radius for operation is 360 mm / 14-3/16". Protective sleeves for the piston rods, brake hoses, and prototype imitation couplers are included.
Length over the buffers 26 cm / 10-1/4".

A freight car set to go with this locomotive can be found in the Märklin H0 assortment under item number 46664.

This model can be found in a DC version in the Trix H0 assortment under item number 22988.

Find more Märklin explanation videos on our YouTube Channel

Spare parts for our articles can be found here in our spare parts search.

Digital Functions

* New features of the Central Station 2 (Part No. 60213, 60214 or 60215) with the software update 4.2

** New features of the Mobile Station 2 (Part No. 60657/66955) with the Software Update 3.55
