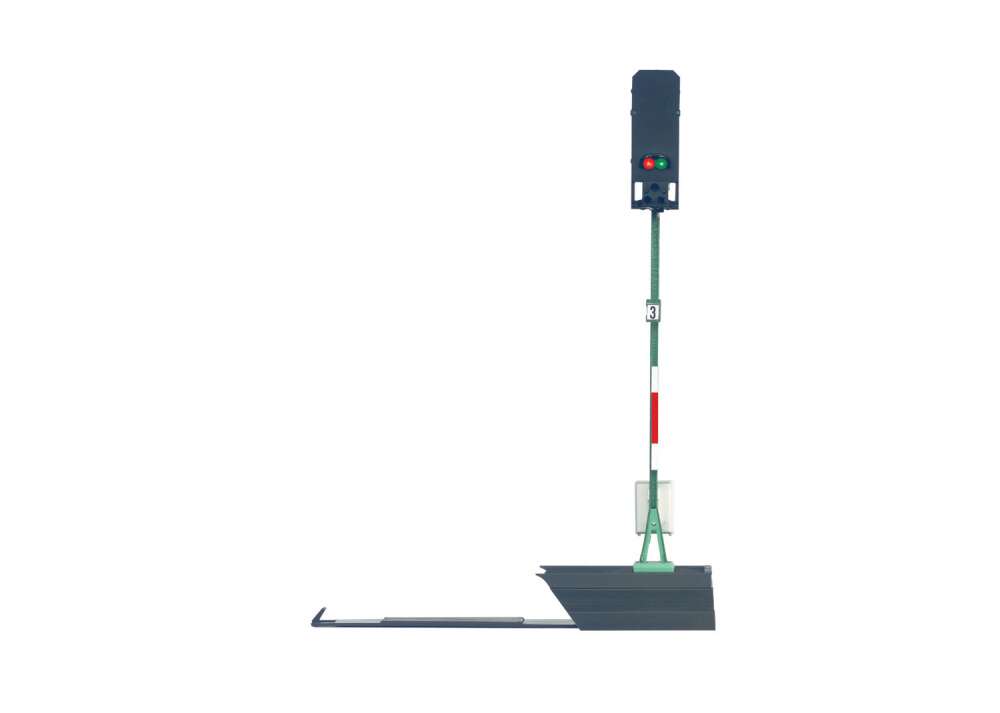

Color Light Home Signal
Color Light Home Signal

Color Light Home Signal

Artikkelnr:
76491
Leverandør:
Märklin
Pris:
1 079,00 kr
Antall:

Ønskeliste

Logg inn eller registrer deg for å benytte ønskelister.
Produktbeskrivelse

Prototype: German Federal Railroad (DB) standard design block signal. 2 settings: "Stop" - red (Hp0) and "Proceed" - green (Hp1).

Model

The signal has an integrated electronic signal circuit and 1 separate signal decoder. Control of all functions can be done in the digital system with the signal decoder included with the signal, or in conventional operation with a 72760 control box. The signal decoder can be installed under C Track or under the layout. For digital operation, the configuration and the address can be assigned and tested before installation of the signal. Connections for controlling train movements and for 1 distant signal are on the signal decoder. Height without base 78.0 mm /3-1/16".

 Features

Digital decoder with up to 9 digitally controlled functions, which can be operated with the 60652 or 60651 Mobile Station. Up to 5 functions, which can be operated with the 6021 Control Unit. Equipped for up to 16 functions with future controllers. The functions present depend on how the locomotive is equipped.

Inkl mva
