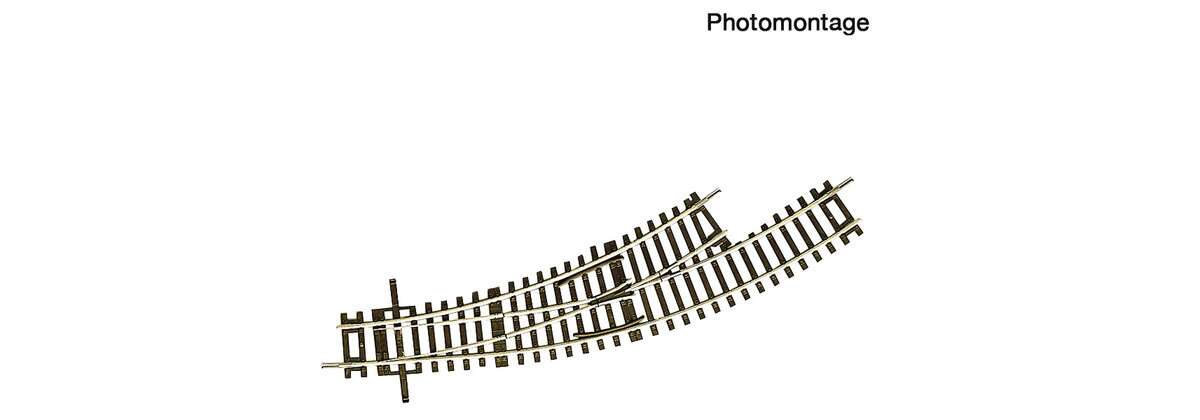

Curved turnout left BWl2/3

Curved turnout left hand BWl2/3, without turnout mechanism.

Radius of main track and branch track 358 mm (R2), arc angle 30°.

Suitable turnout mechanism:
40295 or 40296 (electric turnout mechanism),
40297 or 40298 (manual turnout mechanism)
or 10030 (below baseboard mechanism).
Please note the operating instructions!

■ Frog and wheel guide completely revised
■ Prototypical passing of the frog possible
■ Groove width in the frog area according to NEM
■ Polarisation of the turnout frog possible in combination with electric ROCO turnout drives

Note:
The curved turnouts R2/R3 are only conditionally suitable for to-scale express coaches with a length-over-buffers exceeding 300 mm because the parallel track separation narrows at the turnout, causing problems if long wagons meet at the turnout.

Previous item no: 42464
