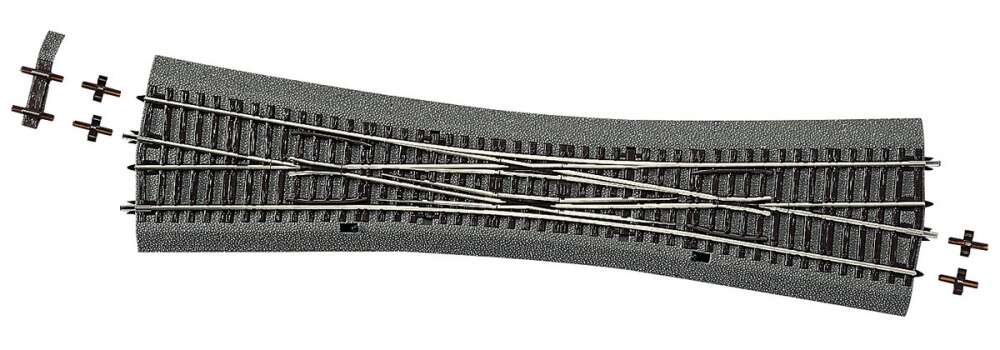

Double slip turnout DKW10

Dobbel kryssveksel DKW10

Double slip turnout DKW10 with bedding, manually operated. Standard design with internal switch rails.
Length 345 mm (= G1 + G½), crossing angle 10°, branch radius 959 mm.

For installation crossing from left or right two 2.5 mm spacers (D2) are included. An 8 mm spacer element (D8) is included for combining with diagonally installed 10° turnouts.

Suitable turnout mechanisms (2 pieces are required): 42620 or 42624.
Please note the operating instructions!
