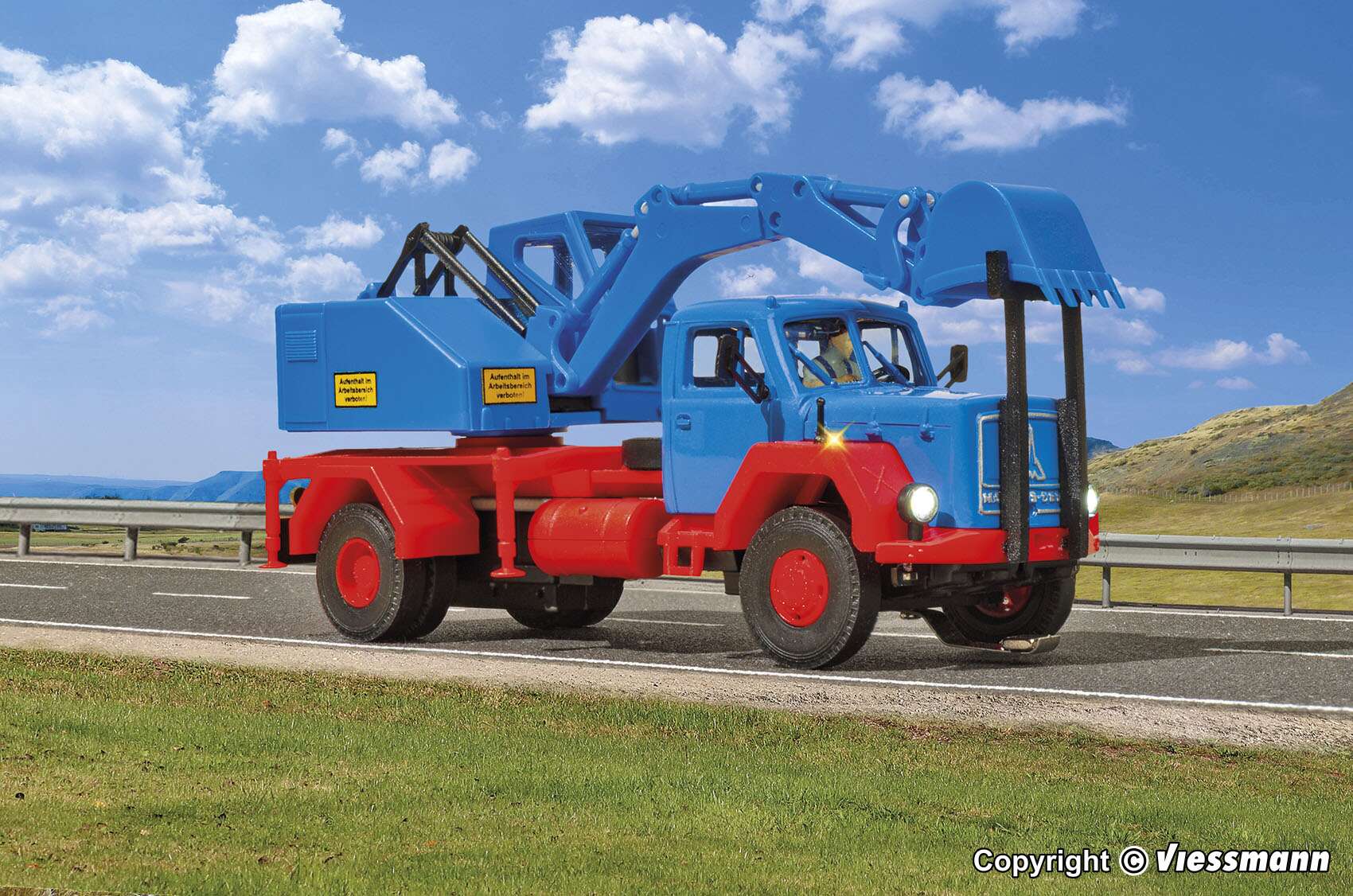

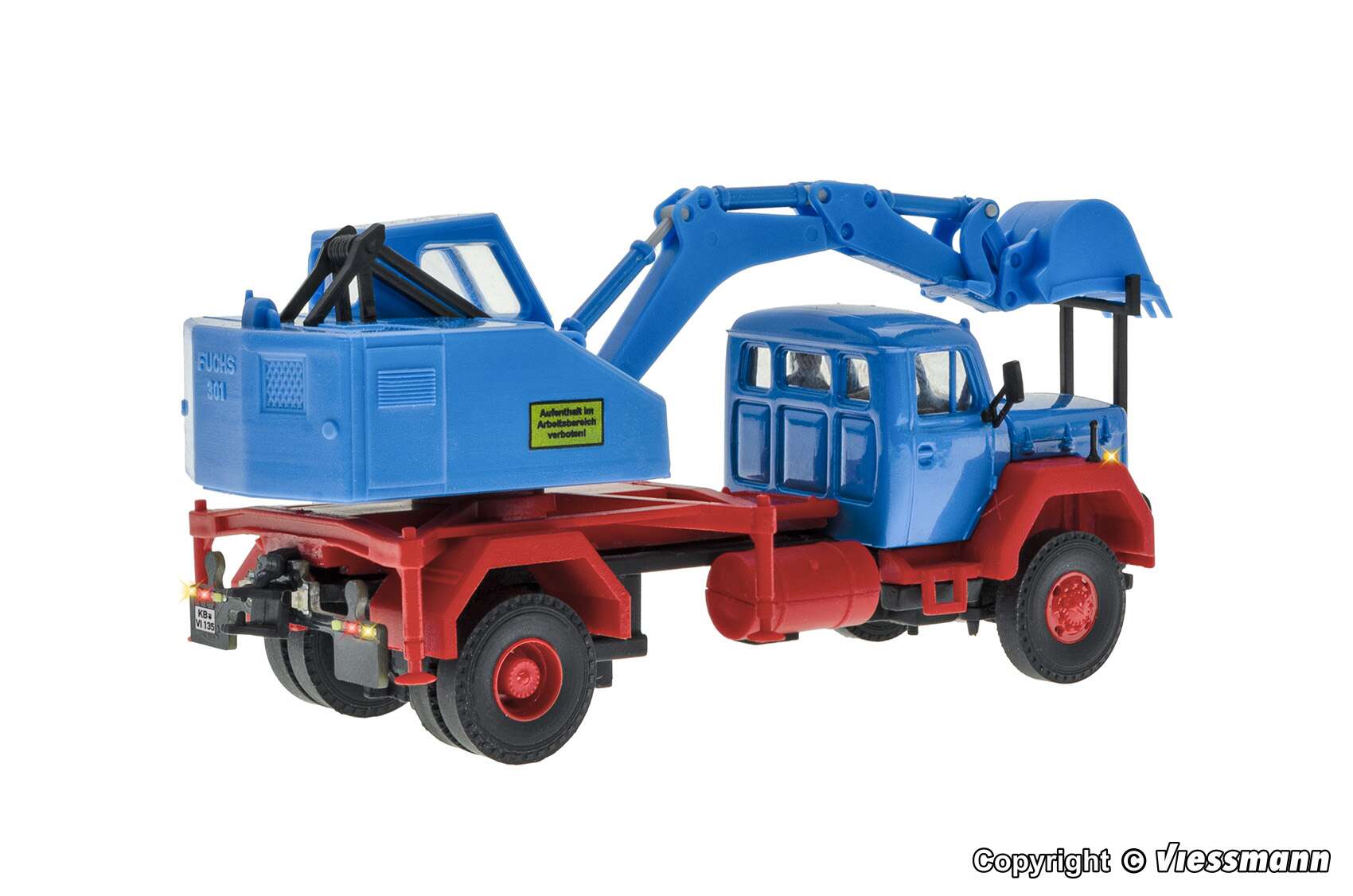

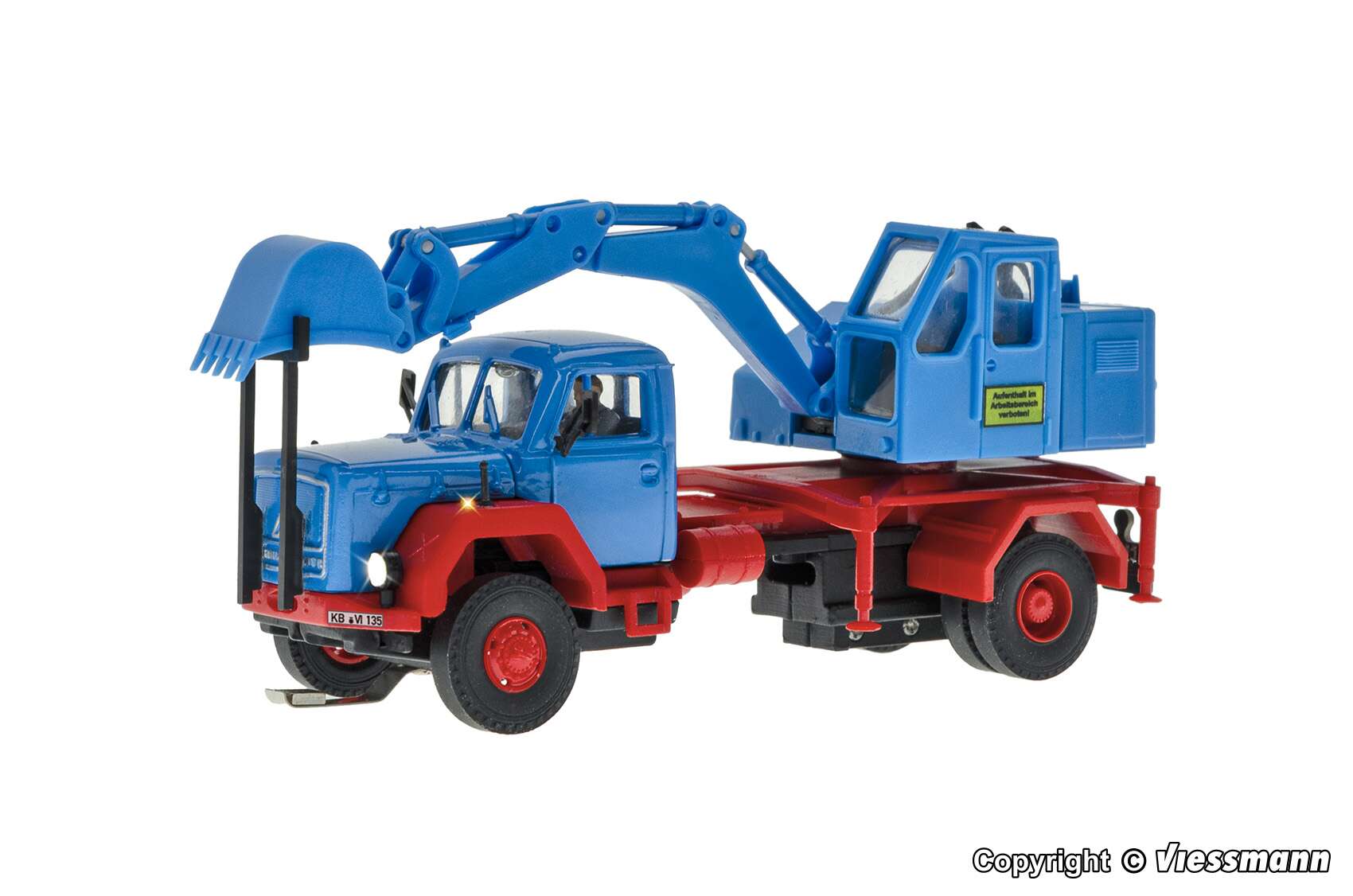

MAGIRUS DEUTZ 2-axle square bonnet with excavator attachment, basic, functional model

Product information "H0 MAGIRUS DEUTZ 2-axle square bonnet with excavator attachment, basic, functional model"

Like all models of the CarMotion series, the vehicle comes with the following functions:
- Charging and programming connection
- Short charging times due to modern lithium polymer batteries
- With a full battery and normal operation with waiting times and various speeds a runtime of approx. 4 – 6 hours, and approx. 2 hours at max. speed/full load is possible.
- Easy on/off switching via a reed contact under the cab‘s roof with magnetic pointing stick or telescopic magnetic bar, item 8410
- Infrared transmitter/receiver for distance control (limited compatibility with other IR systems)
- Realistic braking resp. accelerating action and configurable speed due to speed-controlled motor
- Free cargo area due to underfloor drive unit

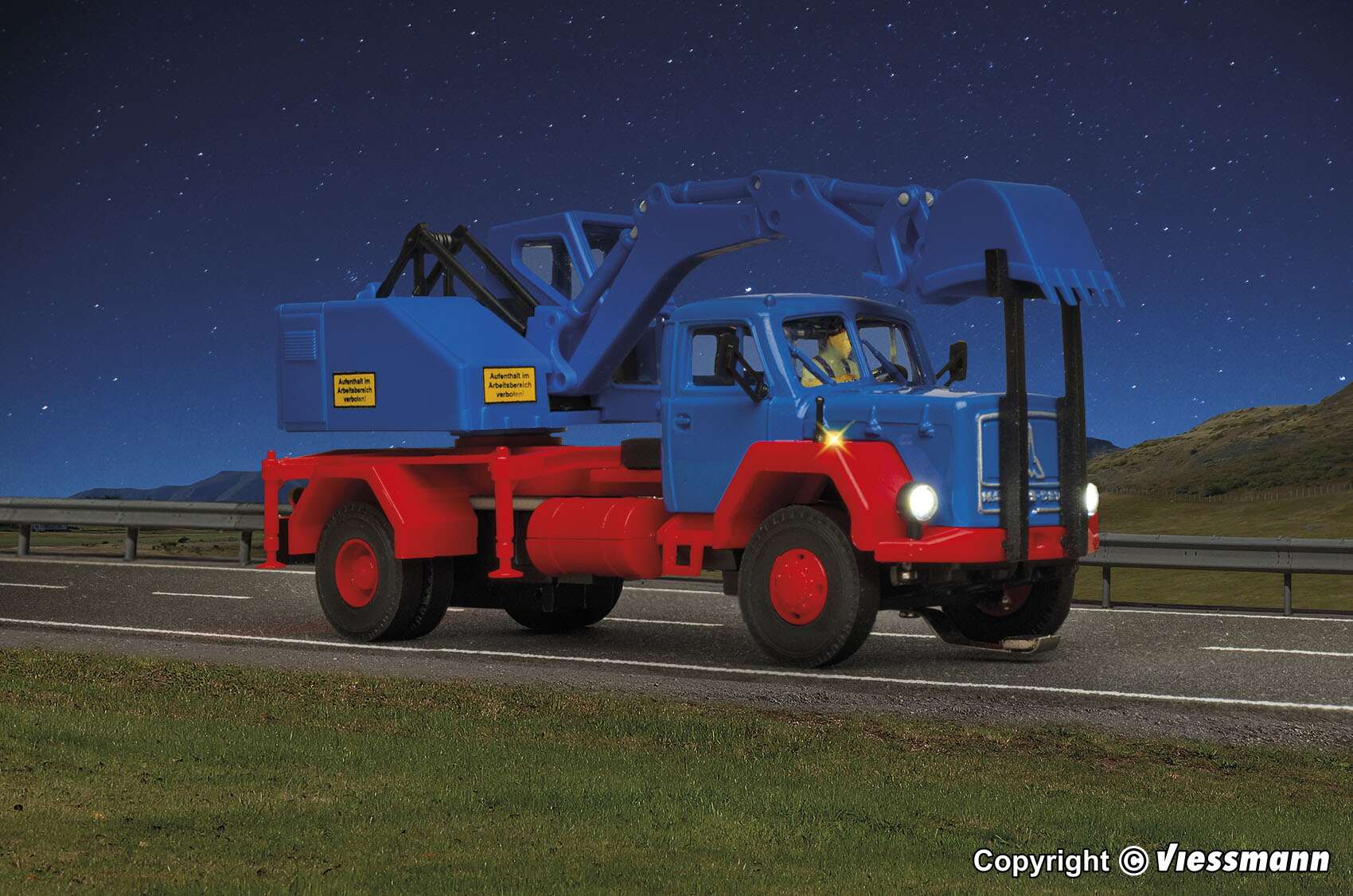

- Cabin lighting
- Braking and reversing lights
- Direction indicators right/left and warning lights controllable
- Low beam / high beam light
- Roof beacons (depending on type of vehicle)
- Clear seethrough driver‘s cab with figure
- 5-pole plug-in coupling for the connection of CarMotion trailers or semitrailers
- Compatible with existing systems with contact wire or magnetic tape
- Control by infrared light (IR), permanent magnets item 8431 in the road, electromagnetic stop coils and remote control item 8402
- Even without mechanical guidance a short straight line reverse is possible via steering by the remote control
Prototype data: Magirus Deutz 230 D 16, 169 kW / 230 HP with FUCHS F301 H excavator attachment.
In 1965, several F301 models were equipped with a hydraulic excavator system from the company Schaeff in Langenburg, which was very well received by customers! A hydraulic system was integrated into the base machine, which was essentially similar to the F301, along with a slightly more powerful engine. A 700 mm wide bucket and a 570 mm wide grapple were available for use.
Suitable retrofit kit Sound: item 8450
L 8.1 x W 3.3 x H 3.6 – 6.4 cm
