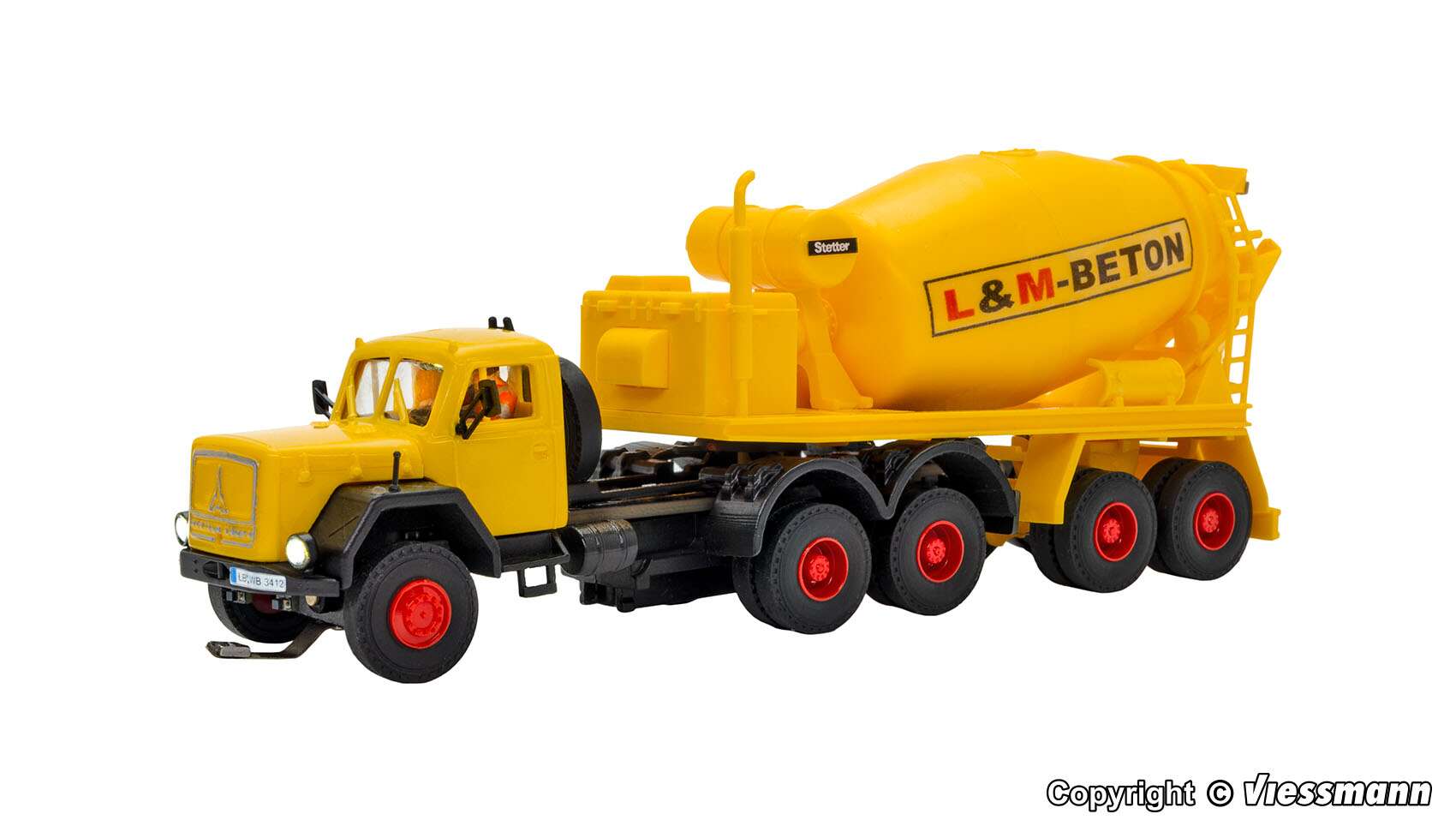

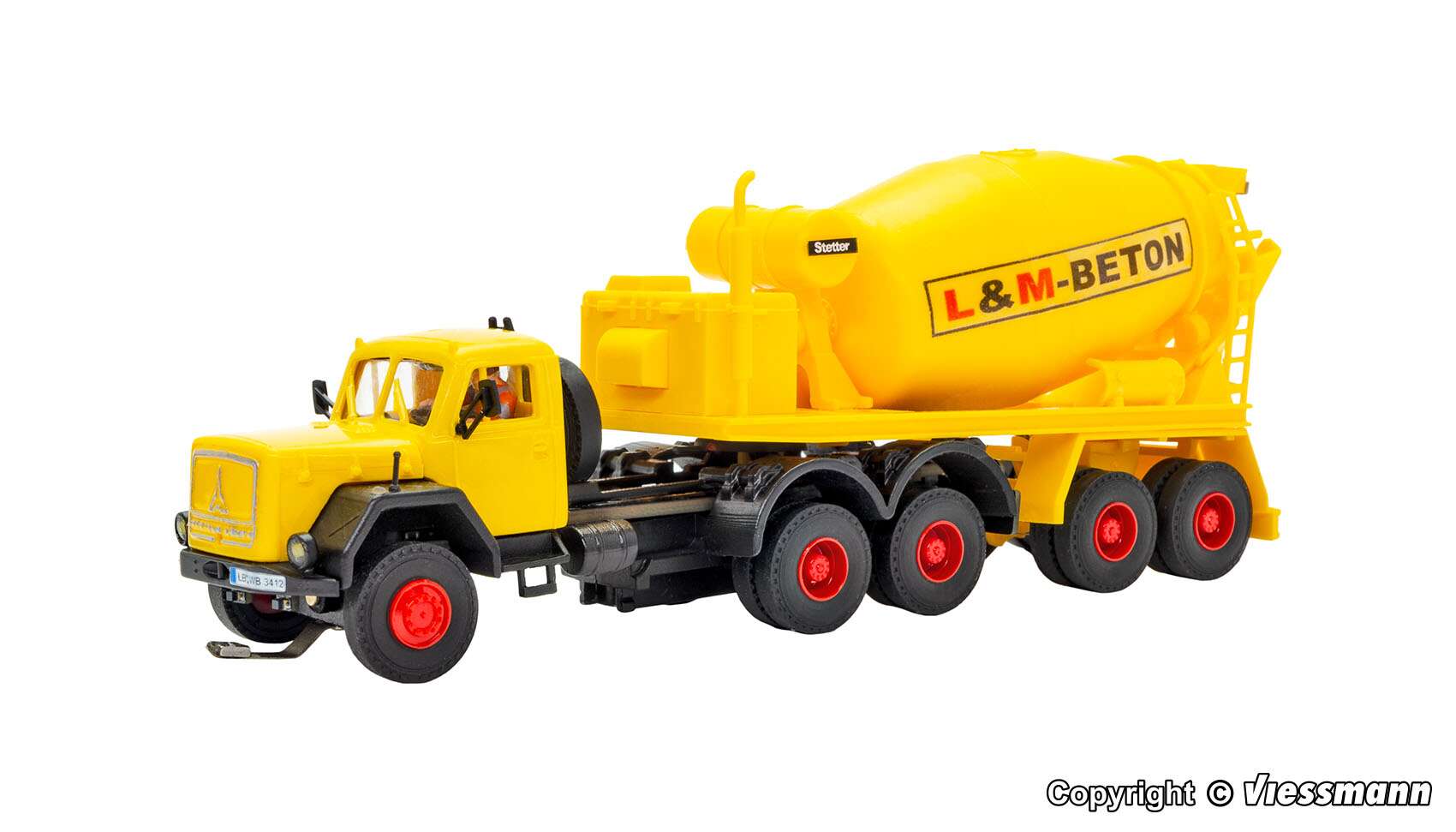

MAGIRUS DEUTZ 3-axle square bonnet with con- crete, mixer semitrailer, basic, functional model

Product information "H0 MAGIRUS DEUTZ 3-axle square bonnet with con- crete, mixer semitrailer, basic, functional model"

Like all models of the CarMotion series, the vehicle comes with the following functions:
- Charging and programming connection
- Short charging times due to modern lithium polymer batteries
- With a full battery and normal operation with waiting times and various speeds a runtime of approx. 4 – 6 hours, and approx. 2 hours at max. speed/full load is possible.
- Easy on/off switching via a reed contact under the cab‘s roof with magnetic pointing stick or telescopic magnetic bar, item 8410
- Infrared transmitter/receiver for distance control (limited compatibility with other IR systems)
- Realistic braking resp. accelerating action and configurable speed due to speed-controlled motor
- Free cargo area due to underfloor drive unit
- Cabin lighting
- Braking and reversing lights
- Direction indicators right/left and warning lights controllable
- Low beam / high beam light
- Roof beacons (depending on type of vehicle)
- Clear seethrough driver‘s cab with figure
- 5-pole plug-in coupling for the connection of CarMotion trailers or semitrailers
- Compatible with existing systems with contact wire or magnetic tape
- Control by infrared light (IR), permanent magnets item 8431 in the road, electromagnetic stop coils and remote control item 8402
- Even without mechanical guidance a short straight line reverse is possible via steering by the remote control
Prototype data: MAGIRUS DEUTZ 230 D 26 AK, 3-axle, 230 HP, 12.6 l displacement, V8 direct injection motor, STETTER mixer semitrailer type AM 9, nominal filling: 9 m³.
L 13 x W 3.2 x H 2.9 – 4.2 cm
