Retrofit kit Sound for MB round bonnets, black

Product information "H0 Retrofit kit Sound for MB round bonnets, black "

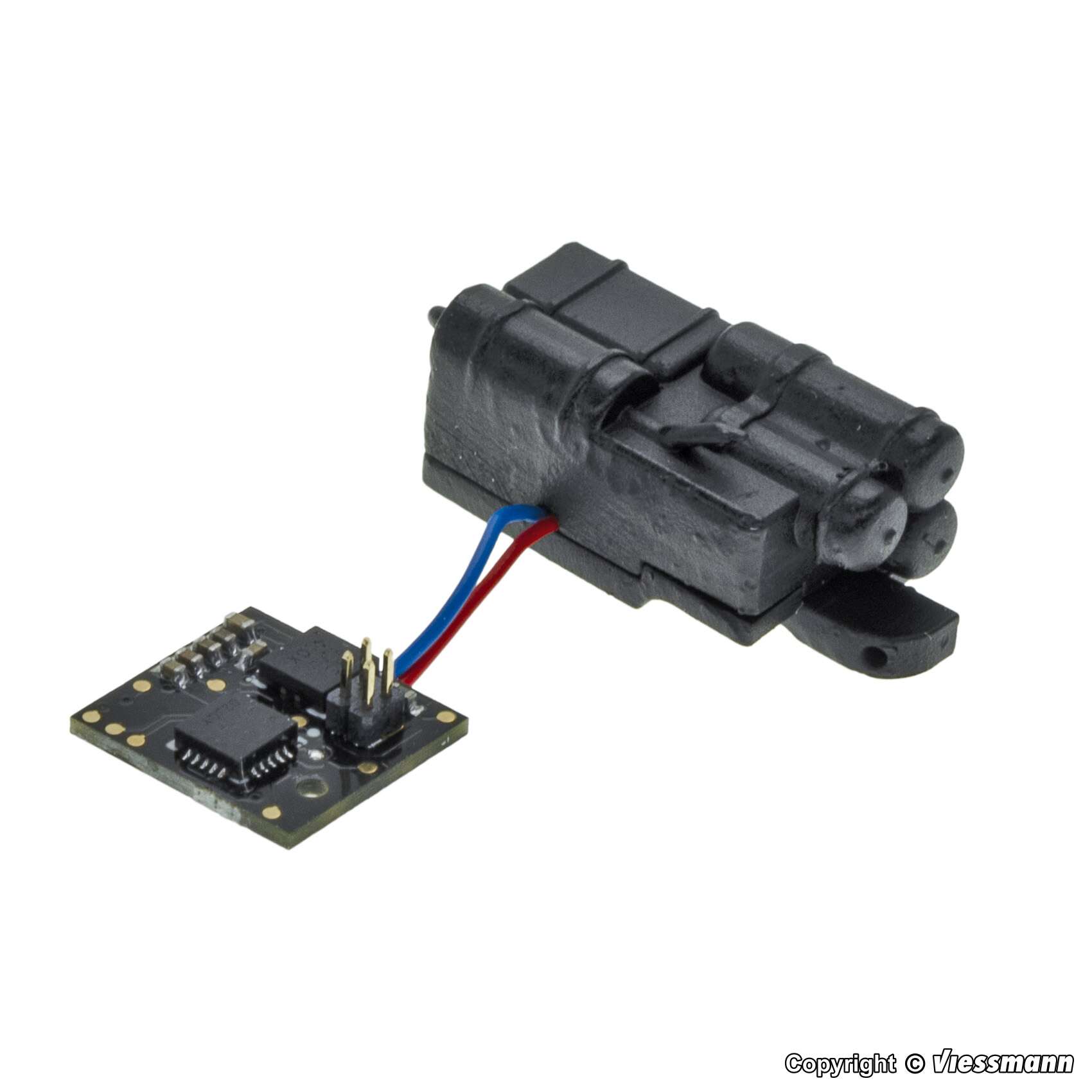

Enhance your CarMotion layout with in-vehicle sound effects. The retrofittable sound modules are vehicle-specific, ensuring they are mechanically, visually, and acoustically tailored to each model. These modules reproduce engine sounds for starting and stopping, as well as various driving-related sounds, such as gear changes, brake squeals, and depending on the vehicle type, even reverse warning signals. The horn, and if equipped, a siren, can also be activated. The engine sound volume is adjustable. The selectable and adjustable sounds can be controlled via remote control, DCC command, infrared command, or magnetic sequence. The circuit board of the sound module is easily connected to the vehicle‘s circuit board using a four-pin connector and secured with screws. The previous left-side components, such as the exhaust and air tanks, are replaced with the new components that house the speaker. Please note that vehicles without the four-pin expansion socket cannot be equipped with a sound module.
Output power 250 mW, efficiency 81 dBA, frequency range approx. 800 – 10 kHz.
Suitable items: 8017, 8022, 8034, 8035, 8052, 8072.
L 22.5 x W 11.2 x H 9.3 mm

Manuals

8453 ( 1,585.33 kb )
