Universal electronics for trucks

Product information "Universal electronics for trucks"

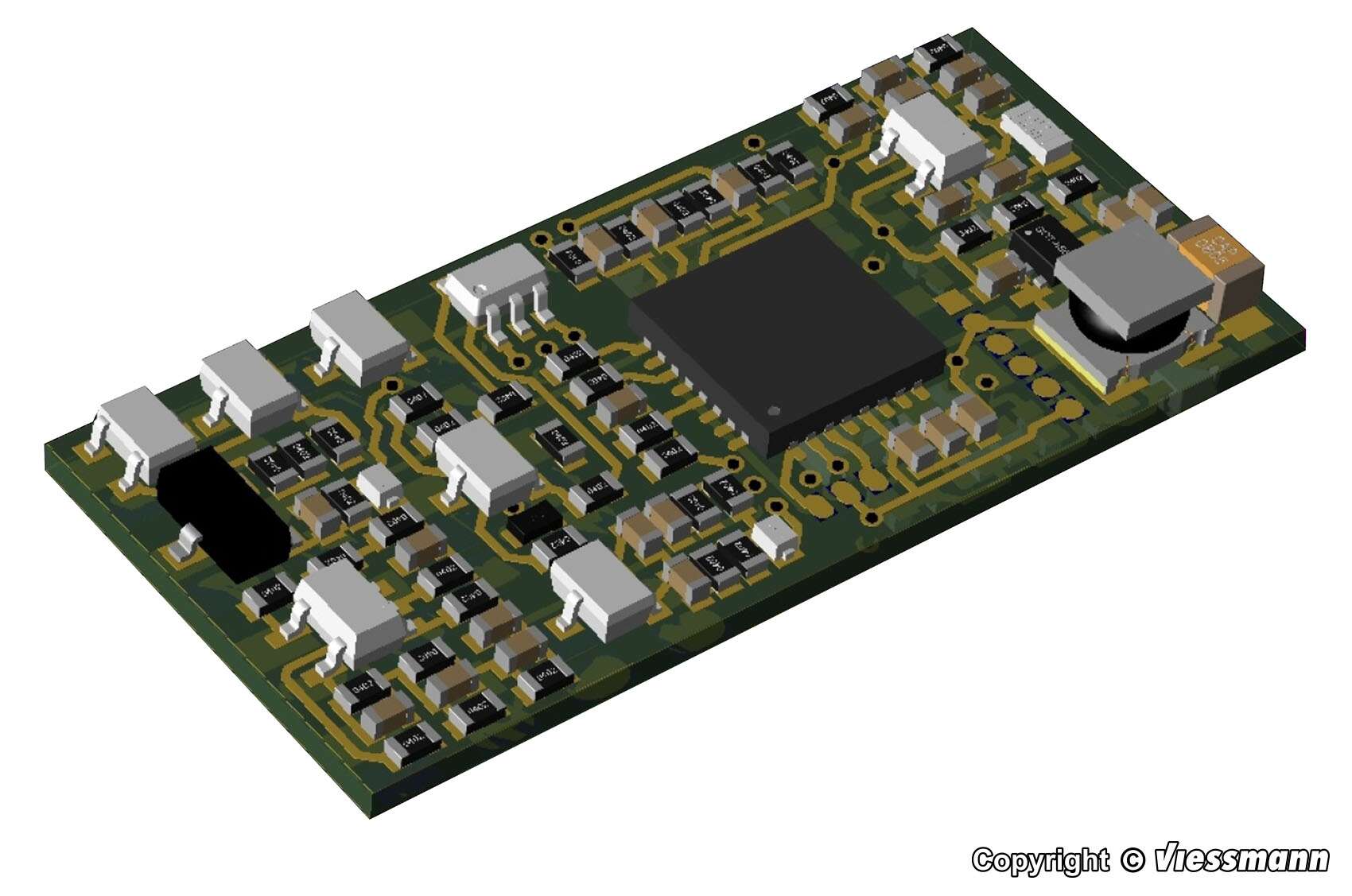

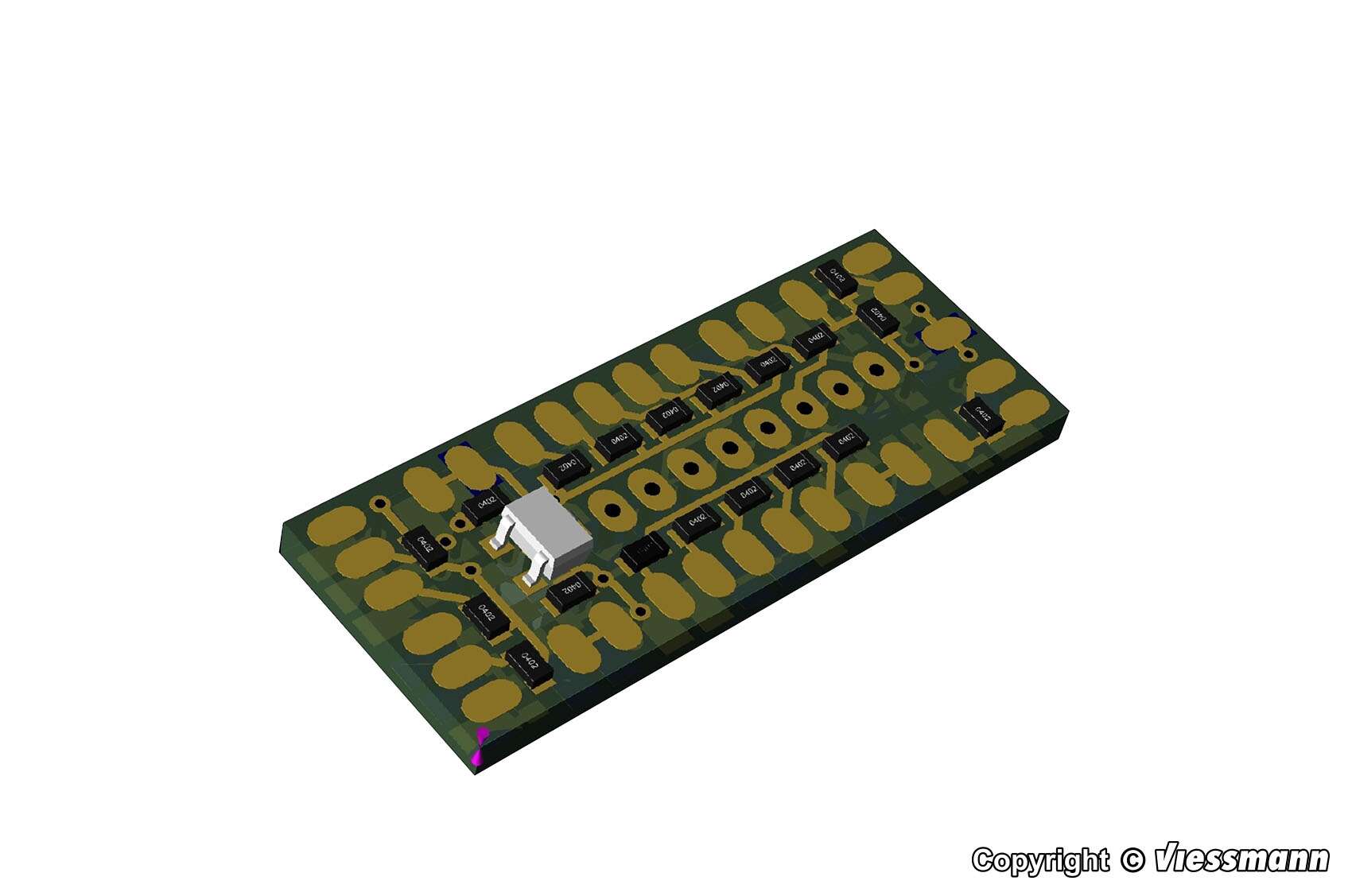

The Universal Electronics Truck provides a compact solution for retrofitting vehicles with the proven driving characteristics of CarMotion trucks. The slim module (approx. W 12 x L 26 mm) is particularly suitable for confined installation situations and operates in conjunction with the H0 gear unit with motor, item 8426. Power is supplied through two 60 mAh batteries included in the set. The module is exclusively designed for use with this motor and batteries. An additional distribution board (approx. W 20 x L 7 mm) facilitates the connection of LEDs for lighting tasks and enables additional light effects. An expansion interface for additional modules is available. Included in the set: Reed contact, Hall sensor, charging and programming socket, 2 batteries, rear bumper with lights, IR transmitter, and a trailer connection. The lighting includes LEDs for the driver’s cabin (1 x white), front headlights (2 x white), turn signals (4 x yellow), and 2 IR receivers. All LEDs and sensors are pre-wired to ensure easy installation. Supplementary sets for additional lighting effects are also available.
