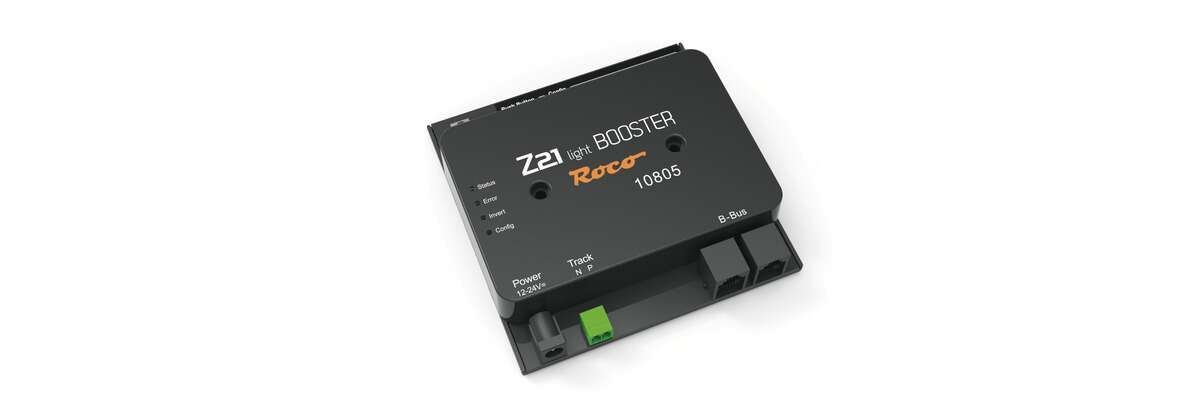

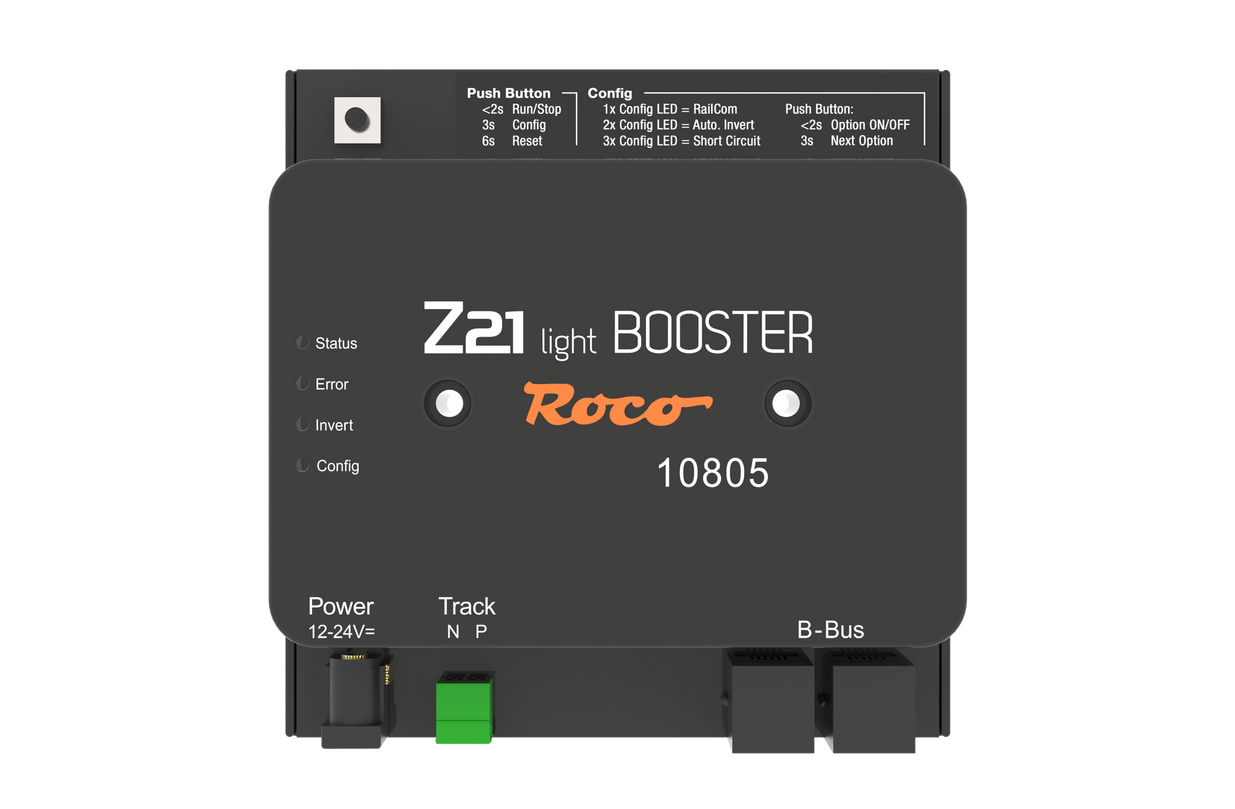

Z21 light BOOSTER

■ Power 3 A (track output)
■ RailCom cutout (allows use of RailCom-track occupied detector)
■ Terminal loop feature with short-circuit detector
■ Connection via B bus (ideal also for multiZENTRALEpro), replaces Booster 10765

Please note: The power adapter is not included.

RailCom is a registered trademark of Lenz Elektronik GmbH, Gießen.

Technical details

Input voltage  12-24 V DC (Only use switching power supplies!)

Input current 3,1 A max.

Own consumption 0,6 W

Output voltage = input current - 1,1 V

Output power 3 A max.

Overload protection Thermal, current and power supply unit voltage

Digital system DCC and/or Motorola

RailCom® RailCom® gap can be deactivated

Auto-inversion By measuring the current, can be deactivated

B-BUS Short-circuit message can be deactivated

Dimensions L x W x H 104 mm x 104 mm x 25 mm
